Our CSP Products die-cast valve covers for Type 1 (not 24.5/30 hp engines) and WBX engines combine the maximum possible space for rocker arms inside with the smallest possible external dimensions. They dissipate heat and ensure a perfect seal thanks to their intelligent design. Organic reinforcement ribs on the inside ensure maximum rigidity. Like all previous valve covers from CSP Products, these also feature reliable sealing thanks to a O-ring seal and special shaft screws with additional O-rings.

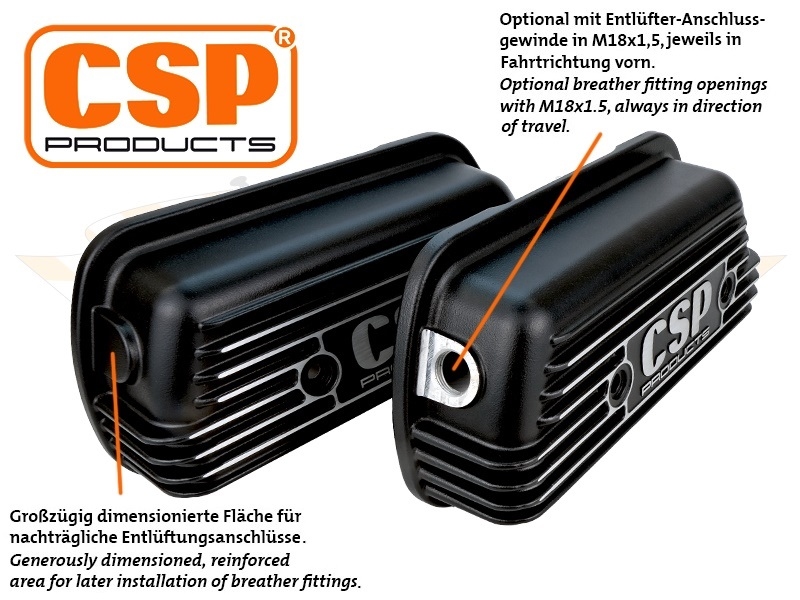

The black textured powder-coated covers feature a cast CSP Products logo, which is face-ground together with the cooling fins as a visual highlight, as well as a generously reinforced area on both sides in case breather holes are required at a later date. On request, they can also be supplied with breather connection threads in M18x1.5 or 3/8 NPT. They are supplied with high-quality mounting material, including 10.9 special nuts manufactured exclusively for us, to ensure the operational safety of the engine even at extreme RPMs and large rocker arm ratios.

Thanks to the die-casting manufacturing process and the availability of only three different versions, we can offer an inexpensive valve cover that incorporates many of the features of our CNC cover.

Here are the features at a glance again:

bolt on CSP Products die-cast valve cover for Type 1 (not 24.5/30 hp) and WBX engines

reliable sealing thanks to O-ring seal, can also be used with cork seal in an emergency

maximum inner dimensions, minimal outer dimensions

plenty of space for all common rocker arm variants

organic reinforcing ribs on the inside for maximum rigidity

black textured powder coating

cooling fins and logo are face ground

generously reinforced area for subsequent breather opening as standard

Optionally available with breather connection thread in M18x1.5 or 3/8 NPT

valve cover with M18x1.5 breather connection compatible with CSP Products hose connections for engine ventilation

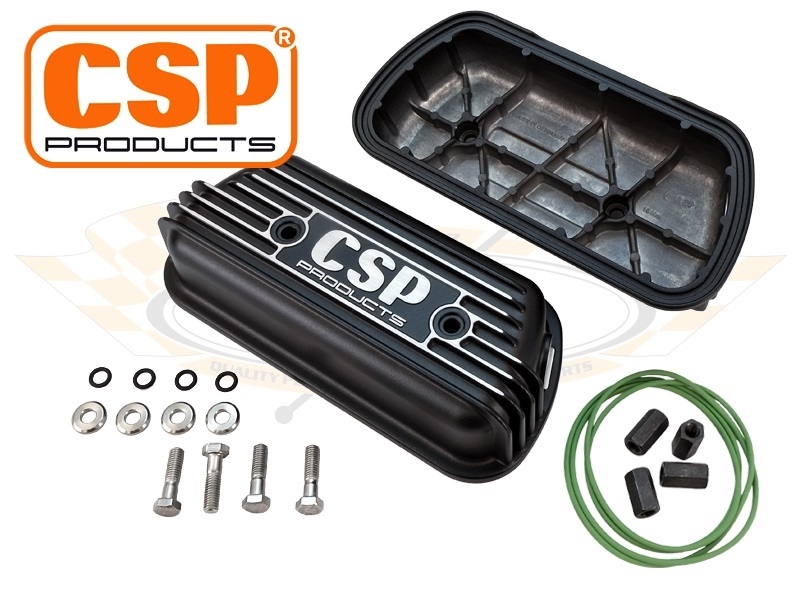

includes high-quality mounting hardware with 10.9 special nuts manufactured exclusively for us to ensure the operational safety of the engine even at extreme RPMs and large rocker arm ratios

Quality from CSP - Made in Germany
