Disc Brake Kit Front 5 x 130 Beetle / Karmann Ghia

Disc Brake Kit Front 5 x 130 Beetle / Karmann Ghia

Disc Brake Kit Front 5 x 130 Beetle / Karmann Ghia

Article code: GPPCSP499 165 5130ZO

CSP Products disc brake systems are the way to go! The real deal! The granddaddy of 'em all! They are available since 1997 and of course made in Germany! They have passed the challenging TÜV examination and are subject to the CoP (Conformity of Production) test, meaning the brakes get checked on a regular basis to guarantee that they exactly match the specification and performance outlined in the type approval documentation!

Tremendous reliability, low unsprung weight and reduced revolving masses are the key features!

Based on the unmodified axle components of VW Beetle and Karmann Ghia (Type-14) the CSP Products disc brakes with 5x130 PCD (Porsche pattern) are mounted to the original spindles by CNC machined adapters. There is no need to modify or alter the spindles, which makes it easy to swap back to the original drum brakes if requested.

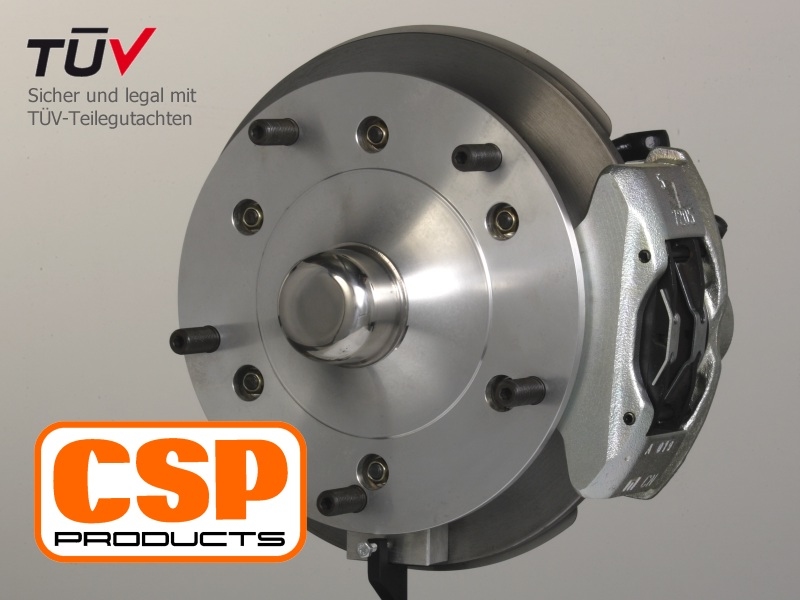

The CSP Products disc brake is basically a hub/disc combination and its ingenious construction makes it applicable on every VW Beetle or Ghia up to 1965. CNC machined, lightweight and heat-treated die-cast aluminium hubs accept solid discs made in Germany with a diameter of 282x9 mm through high-strength connecting elements. The modified floating calipers are also from a renowned mass production manufacturer.

Various sets are available, all matching Beetles and Ghias up to '65 with link-pin front beam: Solid discs and cross drilled solid discs, both also obtainable to match dropped spindles! CSP Products even developed kits to reduce the widening of the track. These zero offset (ZO) options are provided with different hubs and aluminium brake caliper adapters. This way the track widening could be reduced from plus 12 mm down to just plus 3,5 mm on each side.

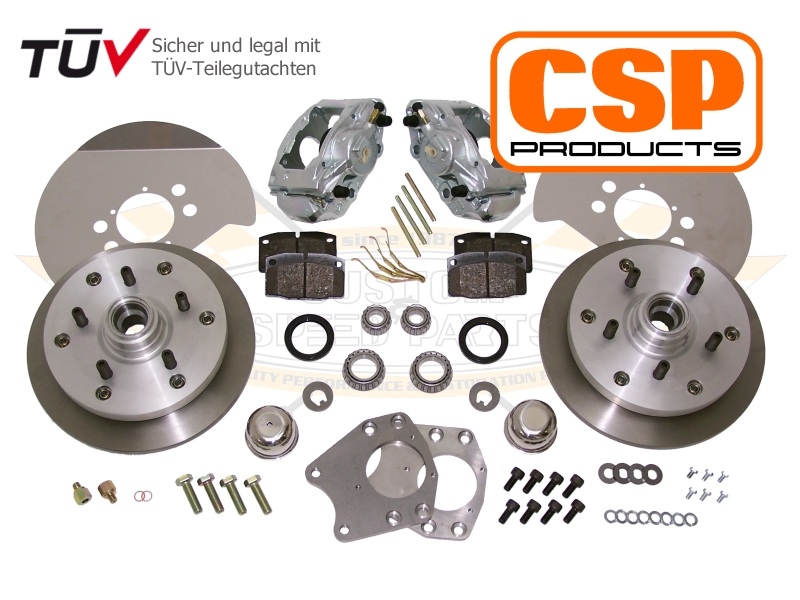

Every kit contains CNC machined cast alloy hubs with rotors and wheel bearings installed, CNC machined caliper brackets, new calipers with pads, stainless steel grease caps, brake hoses, all necessary mounting material, a TÜV certification and fitting instructions in English and German. You just have to purchase the wheel nuts and the master cylinder separately, based on the model of your Beetle or Ghia.

Having CSP Products disc brakes is more than perfect stopping power, it's a statement!

€ 1330.00
